/ Product Categories/ Energy storage battery/



Back

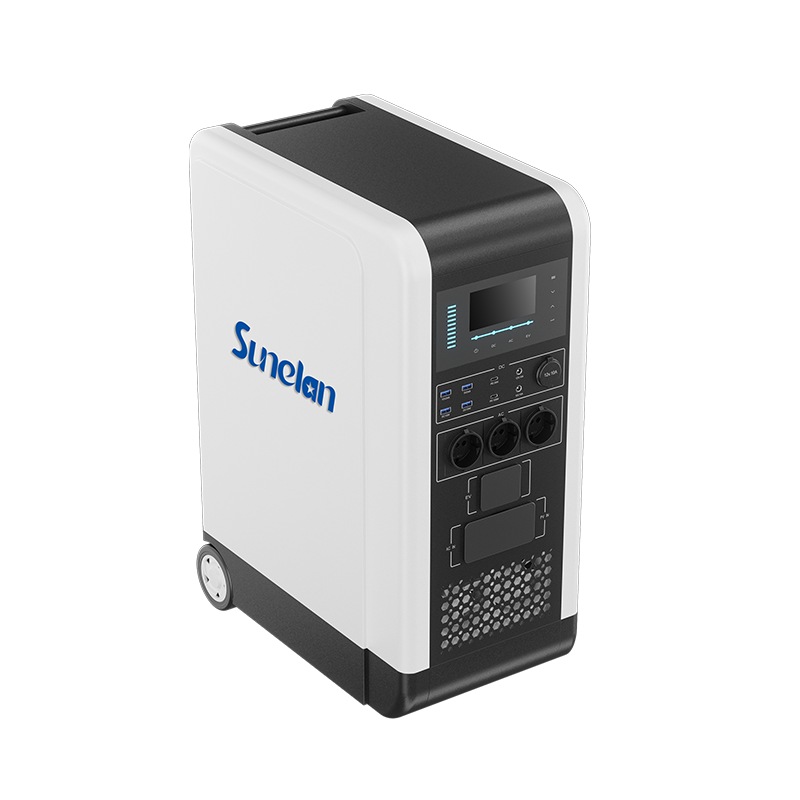

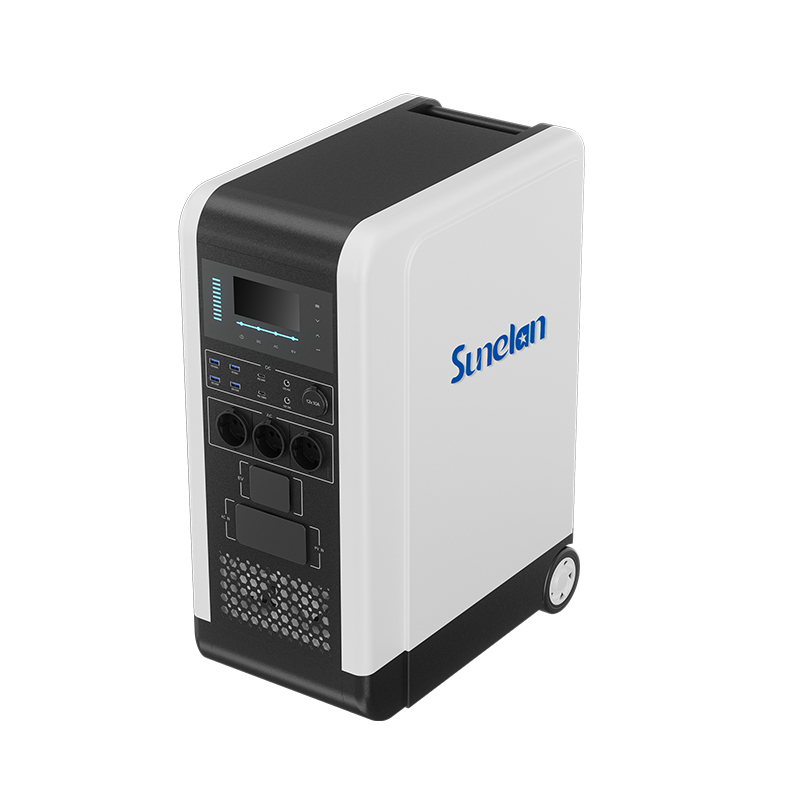

Balcony Solar Energy Storage System

Product Introduction Product Features Technical Specifications

Product Features

Global exclusive patent appearance, practical, beautiful and tasteful.

True capacity, long life. Original A lithium iron phosphate battery, safe and reliable. Real capacity, reject false label, cycle life of more than 6000 times.

Six security protection. Efficient BMS battery management system with over charge, over discharge, over current, short circuit, temperature, charge current limit protection.

Electrician free installation, saving cost. Plug and play, easy to install and use.

Meet a variety of application scenarios, wheel design, flexible movement. It can support household daily electricity consumption, emergency electricity consumption, outdoor electricity consumption and automobile emergency electricity consumption.

Intelligent WIFI and GPS functions can remotely diagnose and manage battery data. Supports intelligent monitoring on laptops, computers, and mobile phones.

Save electricity costs, ensure energy security, independence and stability.

Technical Specifications

Product Model : BPS3、BPS5

BPS3 Model information 

Battery Type LiFePO4 Level A

Rated Energy 3KWh

Rated Voltage 51.2V

Rated Capacity 60AH

Parallel and Serial Mode 16S1P

Maximun charging and discharging current 60A/60A

Off-grid Inverter Power 2.4KW

Operating Temperature （-15~55℃）

Dimensions 443.5*616.5*260.5mm

Weight 50KG

Battery Lifetime Cycle 6000 times（0.5C 25℃ 80%DOD）

BPS5 Model information 

Battery Type LiFePO4 Level A

Rated Energy 5.2KWh

Rated Voltage 51.2V

Rated Capacity 102AH

Parallel and Serial Mode 16S1P

Maximun charging and discharging current 60A/60A

Off-grid Inverter Power 2.4KW

Operating Temperature （-15~55℃）

Dimensions 443.5*616.5*260.5mm

Weight 60KG

Battery Lifetime Cycle 6000 times（0.5C 25℃ 80%DOD）

Other properties 

AC Input

input voltage 110V/60Hz or 220V/50Hz

input current 25A or 12A

Maximum charging power Max 2400W

PV Input(XT90)

input voltage 120~450V

Input Current 20A

Maximum charging power Max 2400W

DC Output

2*USB-A USB 5V2.4A 12W

2*USB-A QC3.0 5V3A/9V2A/12V1.5A 18W

1*Type-C PD3.0 5V3A/9V2.67A/12V2A 24W

1*Type-C PD3.0 5V3A/9V3A/12V3A/15V3A/20V5A 100W

2*DC5521 12V5A(Single 60W,Double 120W)

cigarette lighter 12V10A(Max 120W)

AC Output

output voltage 110V/60Hz or 220V/50Hz

Output current 25A or 12A

Nominal Power 2400W

Peak Power Max 4800W

output waveform pure sine wave

EV trickle charge 2400W/Turn off other AC outputs
